    Dia 20mm Brass Pipe Flow Sensor Ultrasonic High Temperature Resistance

    Ask Lasest Price
    Model Number : HS0002
    Brand Name : AUDIOWELL
    Price : $25.00/pieces 500-1999 pieces
    • Product Details
    • Company Profile

    Dia 20mm Brass Pipe Flow Sensor Ultrasonic High Temperature Resistance

    AUDIOWELL D20mm High Temperature Resistance Brass Pipe Ultrasonic Flow Sensor


    Description

    An ultrasonic flow transducer is a device that uses the principle of ultrasound to measure the flow rate of liquids. It consists of a pair of ultrasonic transducers that are mounted on opposite sides of a pipe. One transducer emits ultrasonic waves into the flowing liquid, while the other transducer receives the waves after they have traveled through the liquid. By measuring the time it takes for the waves to travel between the two transducers, the flow rate of the liquid can be calculated.

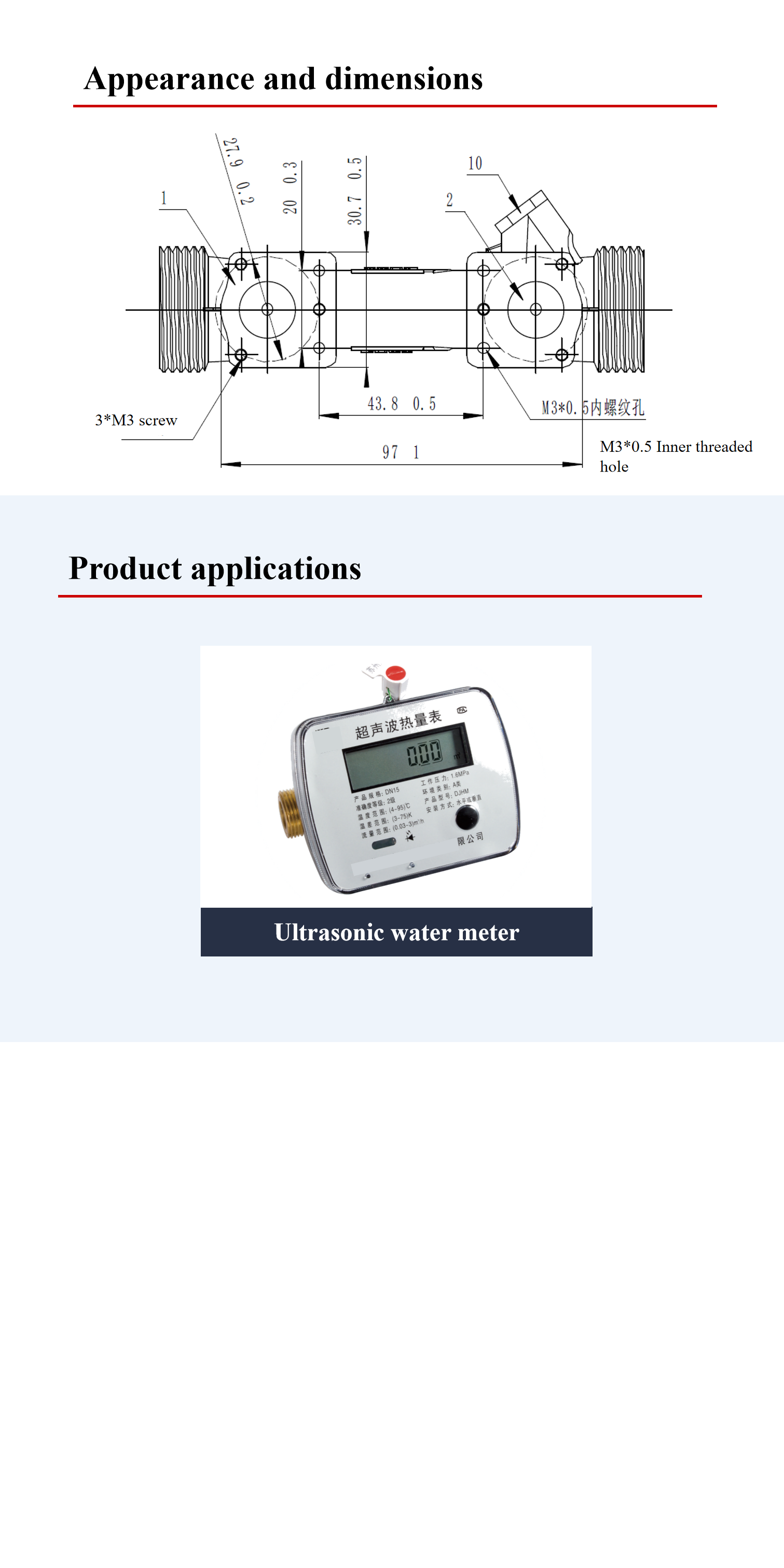

    Information


    Item
    Standard
    Nominal Diameter
    20
    Max Flowrate
    5.0 m³/h
    Min Flowrate
    0.050 m³/h
    Ultimate Pressure
    1.6 MPa
    Operating Temperature
    +0.1 ℃~+90 ℃
    Connecting Thread
    G1
    TheoryUltrasonic
    TypeLiquid Flow Sensor

    Product Details
    Dia 20mm Brass Pipe Flow Sensor Ultrasonic High Temperature Resistance
    Dia 20mm Brass Pipe Flow Sensor Ultrasonic High Temperature Resistance
    More information
    Company Profile
    Dia 20mm Brass Pipe Flow Sensor Ultrasonic High Temperature Resistance
    Dia 20mm Brass Pipe Flow Sensor Ultrasonic High Temperature Resistance
    Dia 20mm Brass Pipe Flow Sensor Ultrasonic High Temperature Resistance
    FAQ
    Q: Are you a manufacturer or a trading company?
    A: We have been specialized in the piezo ceramic related products manufacturing for 23 years.
    Q: Where is your factory located?
    A: Factory adress: No.2 Heping Road, Shali Ind.Park,Zhaoqing Hi-tech Ind.Development Zone,Guangdong,China
    Q: What's the minimum order of your company?
    A: Our minimum order quantity depends on products. Please email us to check.
    Q: Could I have samples for testing first?
    A: Yes, definitely you can. After confirming your requirements, we will quote and discuss with you about the samples.
    Q: Could you send me a price list?
    A: We quote according to the products and the quantity you need. Please contact salesman, and let them know your requirements, they will provide the price list for you.
    Q: Could we have our logo or company name to be printed on your products or packages?
    A: Sure. Your logo could be printed on your products by different ways.
    Q: Could you customize the products according to my requirements?
    A: Yes. We could customize the products for you.
    Q: How does your factory do regarding quality control?
    A: Quality is priority. We always attach great importance to quality control from the beginning to the end of production.
